Location:Home → Products
Previous   |    Next   |    Products

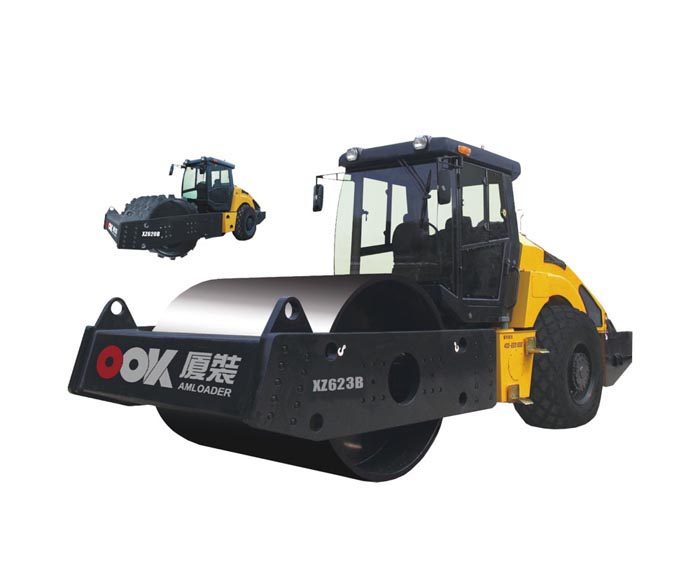

XZ623B

Road Roller

Mechanical drive, double amplitude, hydraulic vibration and steering with optional function/price ratio and reliable performance.
Adopt SC8D180 extra-pressure diesel engine, made by shanghai Diesel Engine factory with bigpower reserving coefficiency, which comply with the aperating condition’s above 4000 meters altitude.
Two sets of brake devices, a hand brake and foot pedal brake, assure the machine’s safety and dependability.
Spacious and comfortable cab mounted an top quality rubber damping elements, with hydraulic upturn function to faciliate the repair and maintenance.
World advanced technology, high in reliability; simple and convenient in maintenance, and low in cost.
Vibration system adopts imported hydraulic components.
Smooth drum and padfoot drum can be replaced each other at any time broadening the operating space.

Model XZ623B XZ620B XZ618B
工作質量Operating mass 23000 kg 20000 kg 18000 kg
靜線載荷Static linear load 560 N/cm 500 N/cm 470 N/cm
振幅Vibration amplitude 1.9/0.95 mm 1.9/0.95 mm 1.9/0.95 mm
振動頻率Vibration frequency 30Hz 30Hz 30Hz
激振力Centrifugalforce 430/330 kN 410/300 kN 390/280 kN
最高行走速度Travel speed 10.5 km/h 10.5 km/h 10.5 km/h
爬坡能力Grade ability 30% 30% 30%
轉彎半徑Turning radius 7500 mm 7500 mm 7500 mm
外形尺寸Overall dimension 6435*2350*3090 6435*2350*3090 6435*2350*3090
振動輪寬度Vibration round width 2100 mm 2100 mm 2100 mm
軸距Wheelbase 3380 mm 3380 mm 3380 mm
柴油機型號Diesel model SC8D180 SC8D180 SC8D180
柴油機功率Diesel power 132 Kw 132 Kw 132 Kw
Previous   |    Next   |    Products
